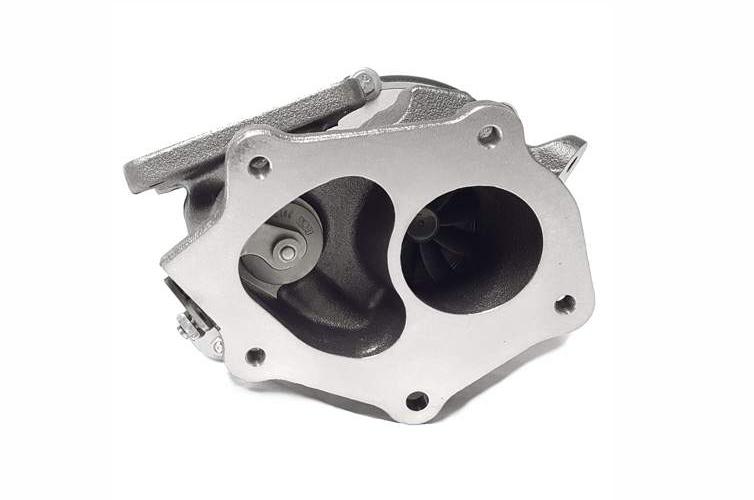

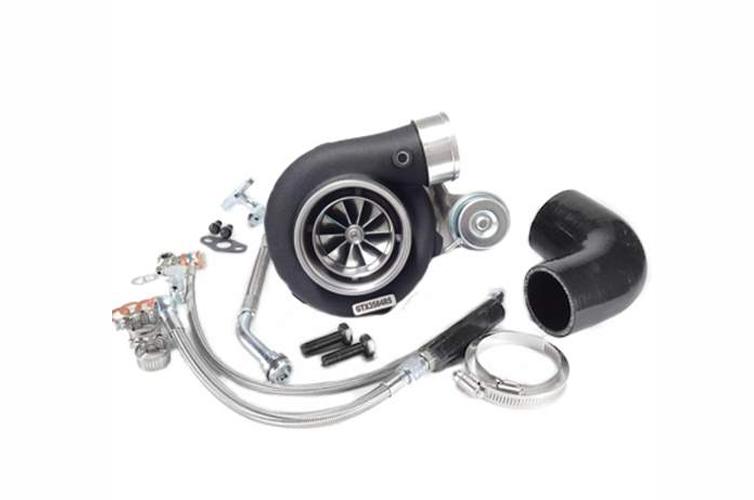

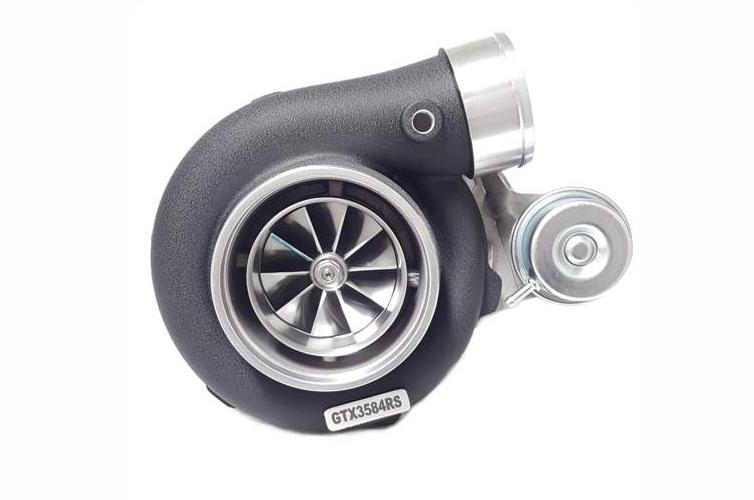

- Garrett Gen2 GTX3584RS EVO X turbo kit with a high capacity 4″ inlet and 2.5″ outlet anti-surge compressor housing and a .94 A/R internally gated turbine housing.
Product Features:
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow “RS” blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Capable of 1,000 HP
Application Notes:
- Compressor housing has a 4″ Inlet ported shroud and 2.5″ outlet. The compressor housing REQUIRES:
-
- Custom hose connection 4 inch intake pipe (not included)
- Custom charge pipe or 2.5″ diameter outlet adapter (not included)
Product Specifications:
- Compressor Wheel Inducer: 67 mm
- Compressor Wheel Exducer: 84 mm
- Compressor Wheel Trim: 64
- Compressor Housing: T04E Frame, .60 A/R, 4″ Ported Shroud Inlet, 2.5″ Outlet, requires custom intake and outlet charge pipes
- Turbine Wheel Inducer: 68 mm
- Turbine Wheel Exducer: 62 mm
- Turbine Wheel Trim: 84
