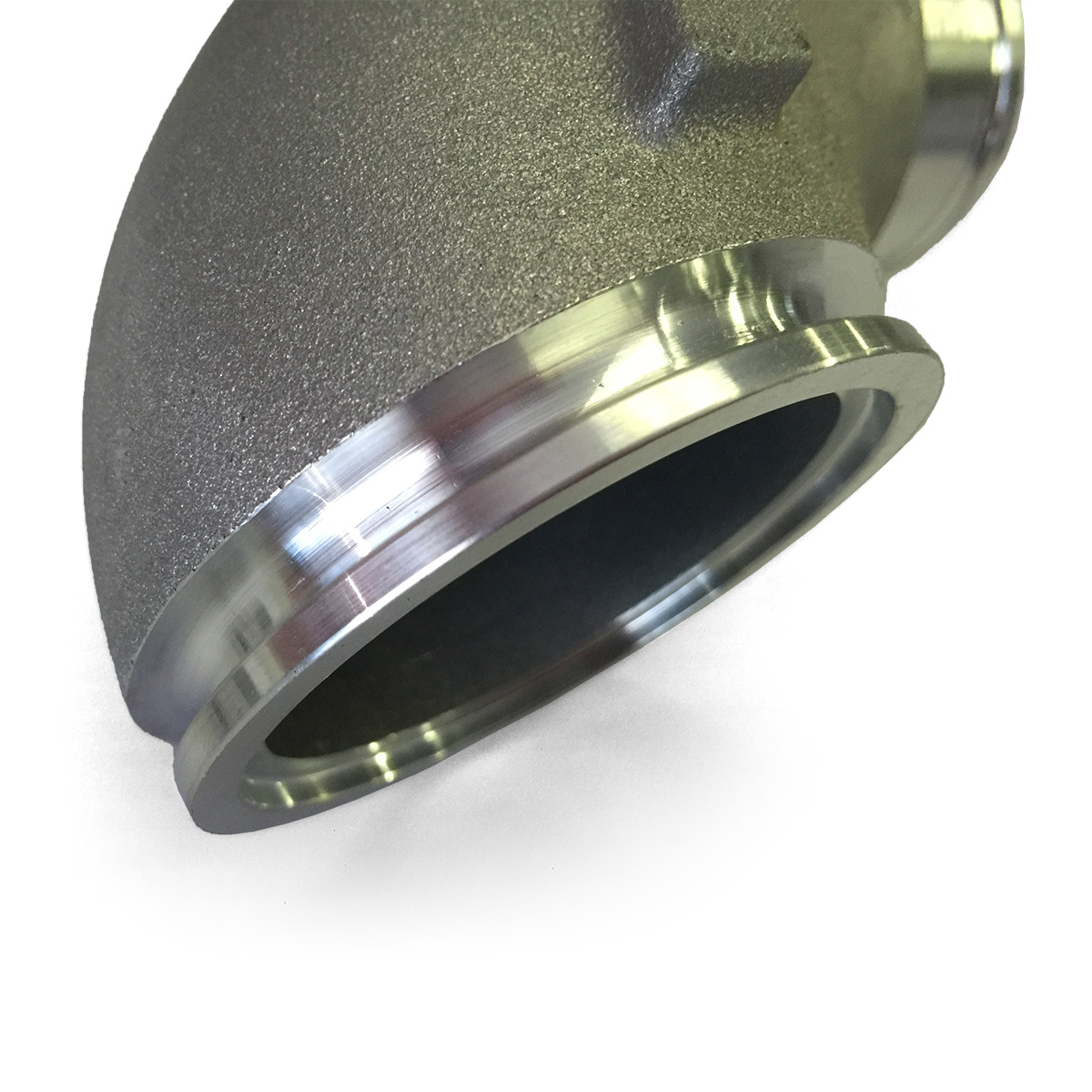

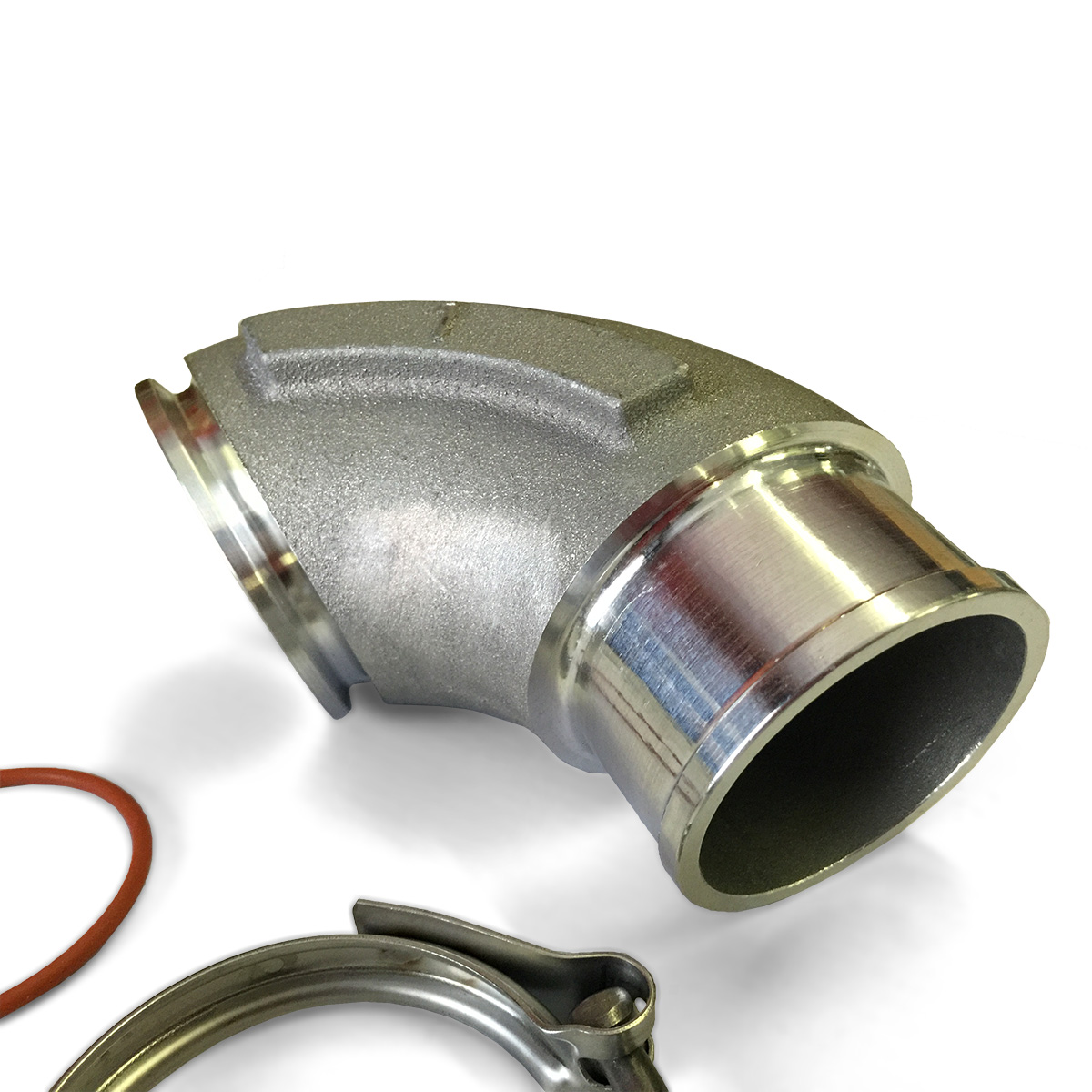

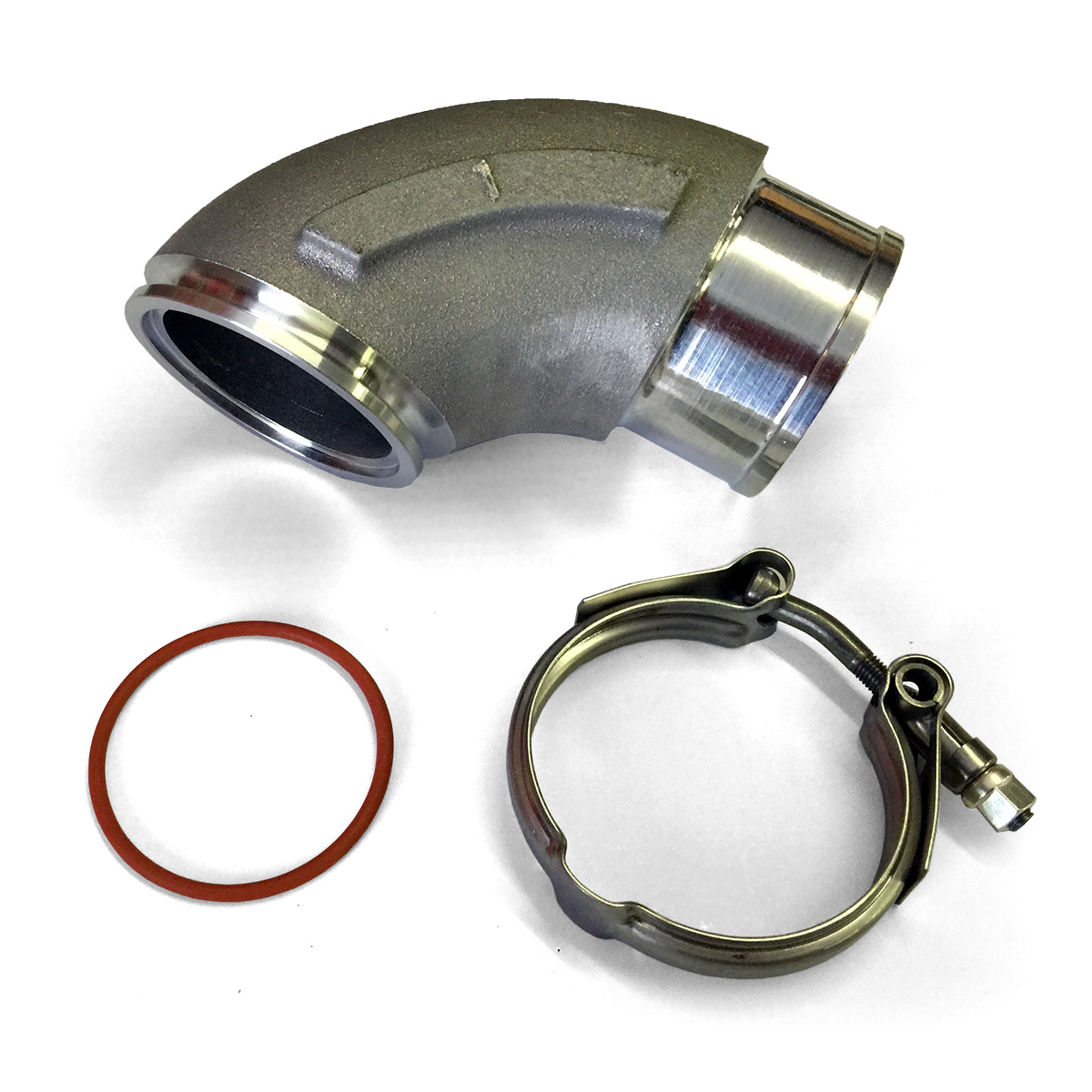

Includes a 2.5″ cast aluminum elbow, v-band clamp and silicone o-ring. Works with EFR B2 frame (9180 / 9174 / 8374) and AirWerks S300SX-E compressor housings with integrated v-band connection. Requires machining of the compressor outlet (see instructions).
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
Instructions
- Carefully remove the compressor cover from turbo.

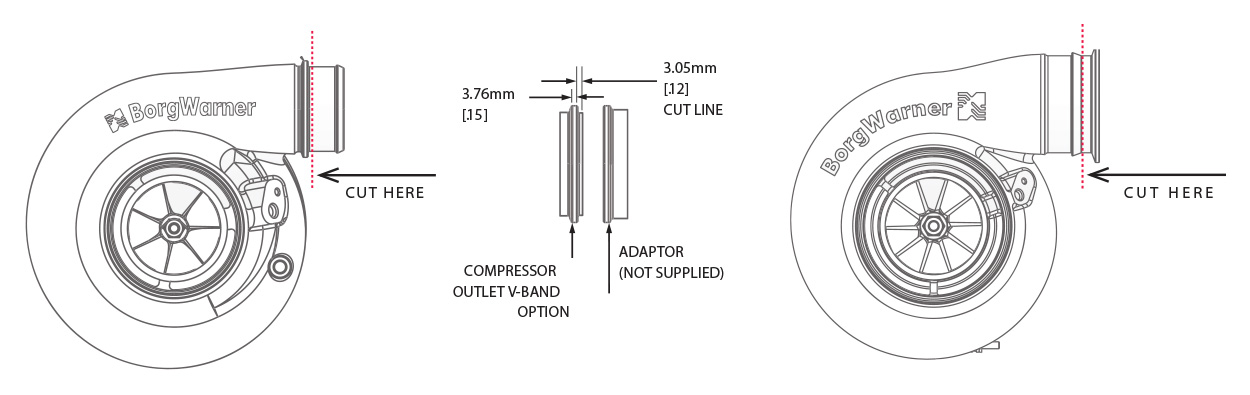

- Secure compressor cover and remove connection feature with a straight, clean cut with leaving a male pilot. Reference the drawings below. Be sure to remove all sharp edges and debris when complete.
- Carefully re-install the compressor cover on turbo and verify that the compressor wheel spins freely.

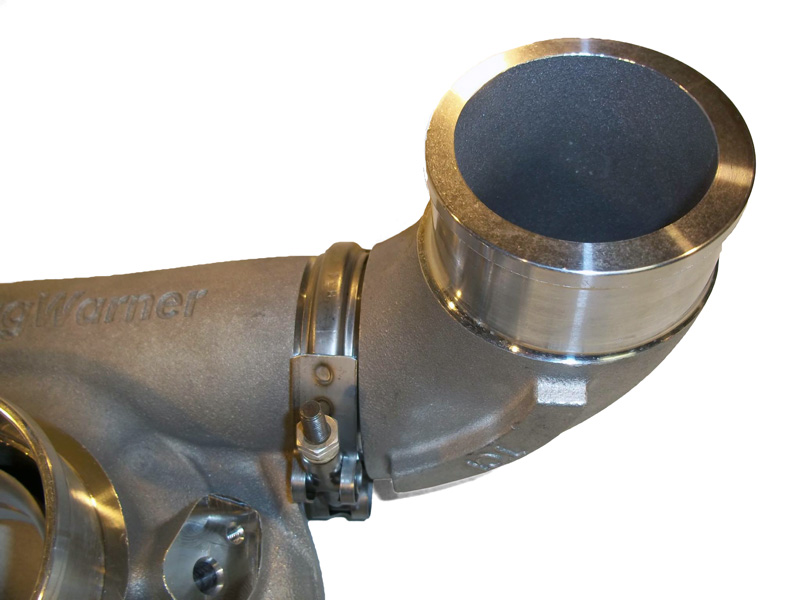

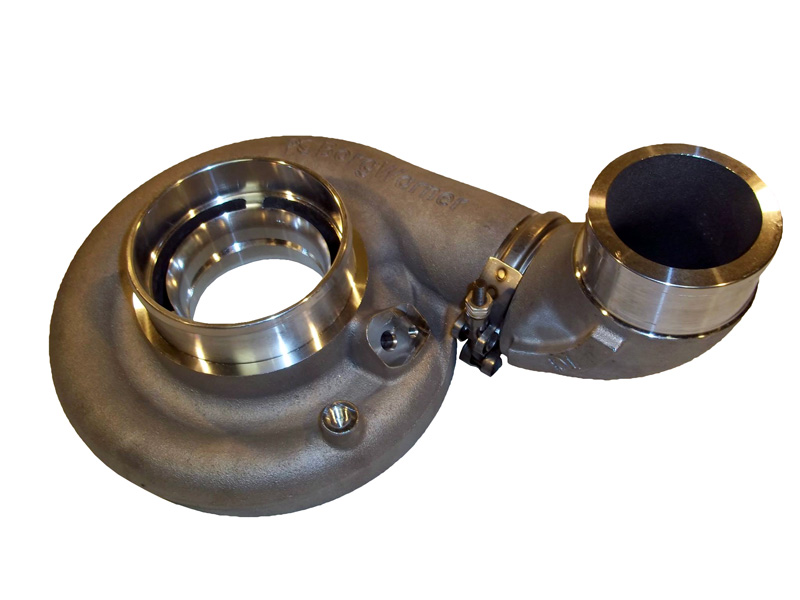

- When connecting the cast elbow to the compressor outlet, make sure to install the supplied o-ring into between the outlet male pilot and the elbow recess.

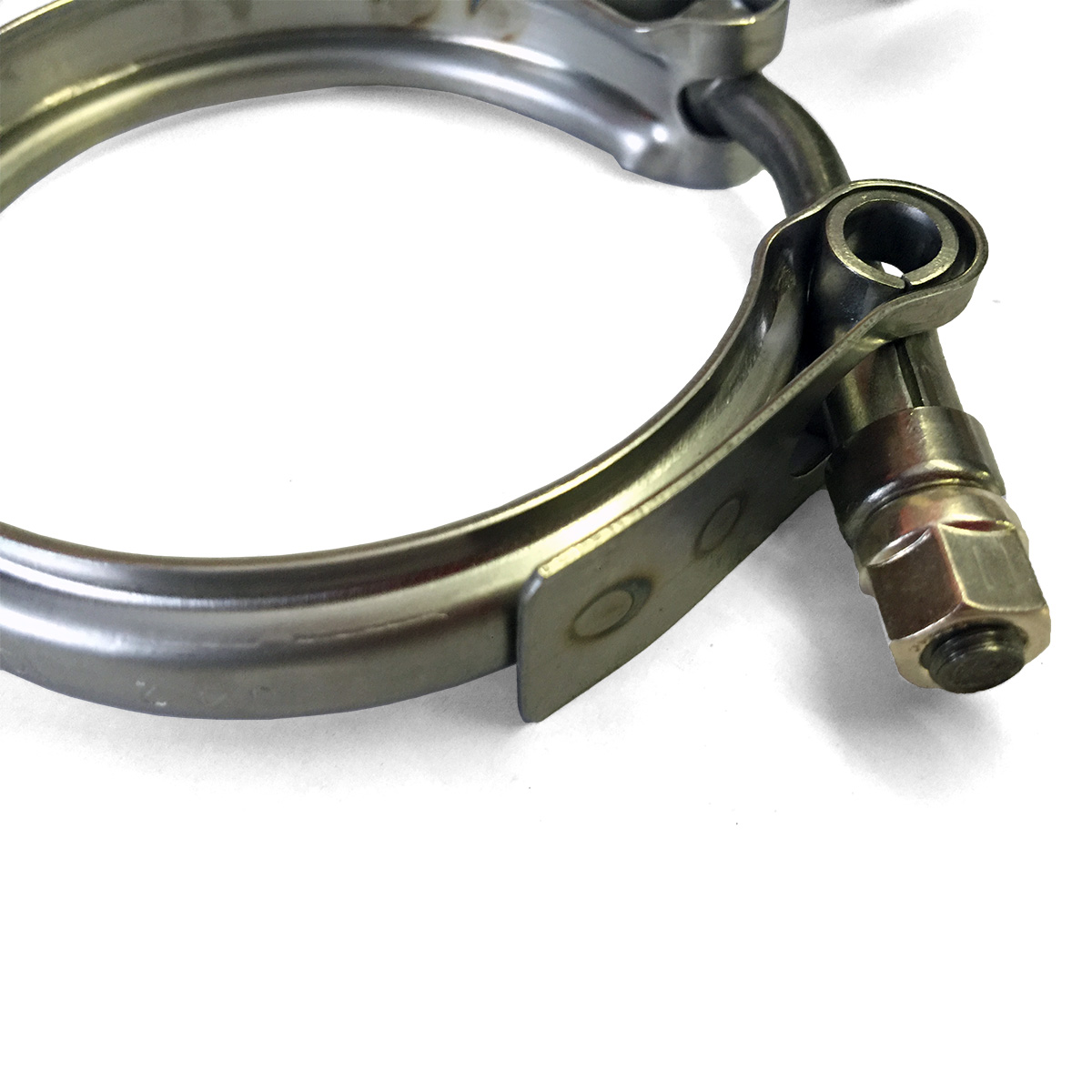

- Secure the clamp onto the v-band flanges.
- Pressure test your system to check for leaks once installed.
