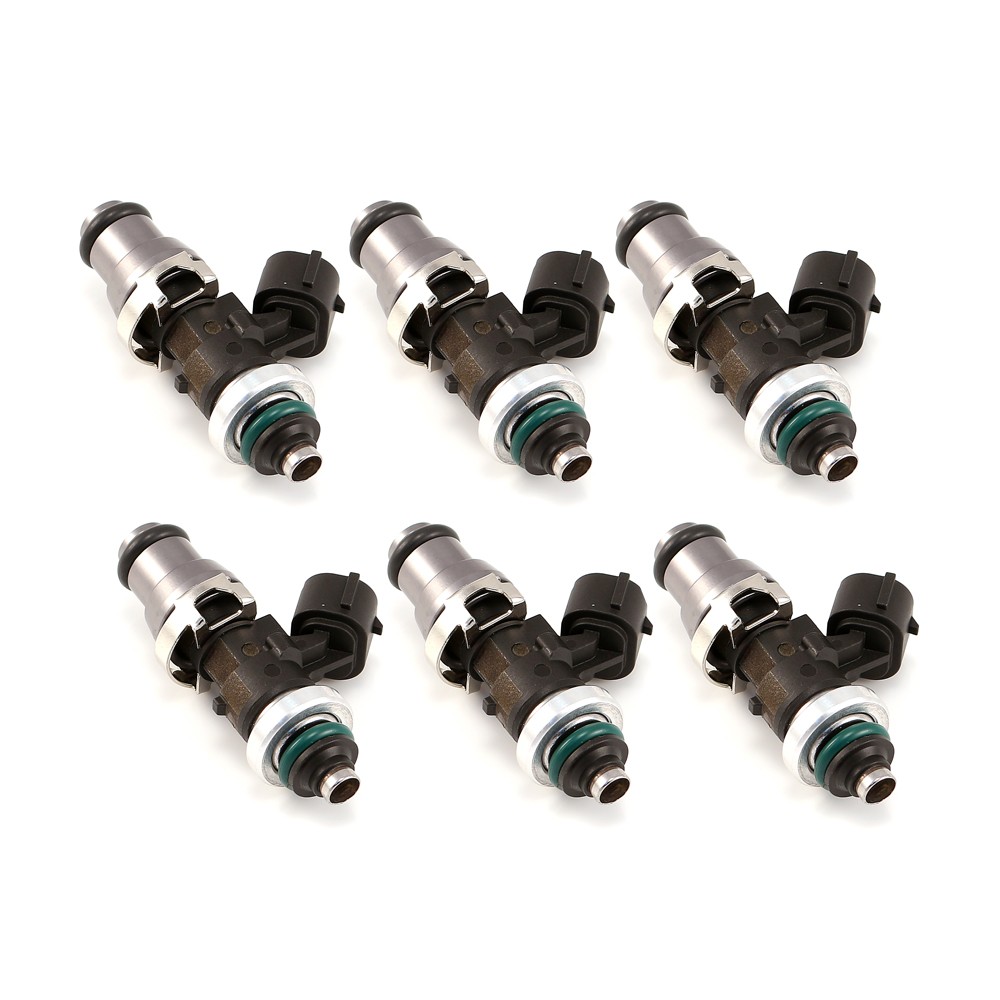

The ID1050-XDS is the evolution of the ID1000, and the latest addition to the XDS-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300-XDS, and ID1700-XDS.
Like the ID1300-XDS and ID1700-XDS, the ID1050-XDS is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner.
Compared to the original ID1000, the ID1050-XDS offers numerous improvements, and is sure to become the new reference.
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Basic Specifications
- Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
- Fuel Compatibility – Compatible With All Known Fuels
- Electrical Connector – USCAR
