Radium Engineering Fuel Feed Line Kit EVO X

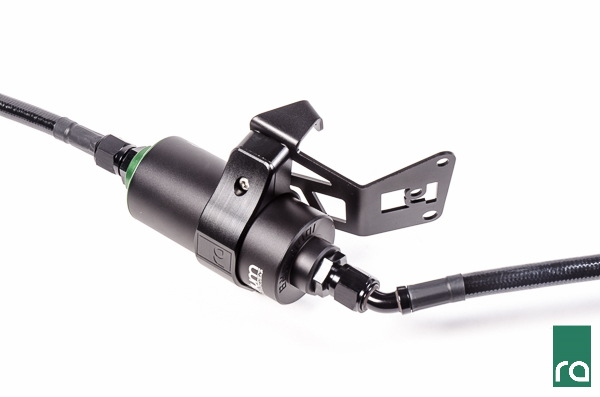

This kit is compatible with all Mitsubish Lancer Evolution X vehicles. It is used to upgrade the fuel feed line on the Evo X. The factory fuel feed line is 5/16″ (8mm) inside diameter, which can become a restriction when using high flowing aftermarket fuel pumps. The Radium fuel feed line kit uses prefabricated -8AN PTFE fuel lines (1/2″ inside diameter) with machine-crimped hose ends and a Radium high-flow fuel filter. The hose lengths are designed to reach from the fuel pump hanger area (underneath the rear seat) up to the fuel rail. The filter mounts under the car by the steering rack using a specially designed bracket that uses preexisting holes, so no drilling is required.

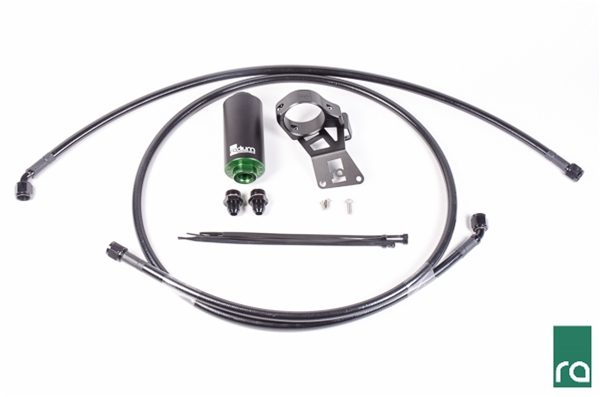

Kit Contents:
– Fuel Filter (10 Micron Stainless Steel or 6 Micron Microglass Filter element available)
– EVO X Fuel Filter Mounting Bracket
– 2pc Billet Fuel Filter Clamp
– 8AN Male Adapter Fittings
– 8AN PTFE Fuel Hose (x2)
– Stainless Hardware
– Cable Zip Ties
