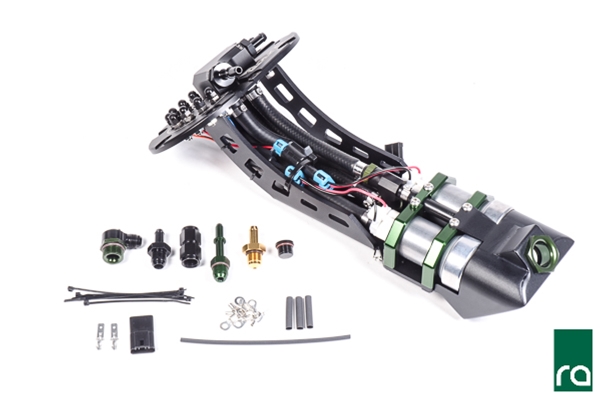

The machined assembly mounts in the factory fuel tank using the OEM gasket and hardware. The fuel level sender and temperature sensors are retained. The kit includes a venturi jet pump with a new integrated pressure relief valve that is optimized for high flow pump(s). The kit also includes a streamlined anodized aluminum collector box, shown below. The pumps merge into a single port outlet with 8AN ORB threads. The crossover and return uses 6AN ORB threaded ports. To simplify plumbing, the kit includes OEM hose adapter fittings for all model years listed. The kit also includes -6AN male fittings for those that use aftermarket feed and return hoses.
The custom designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM cover plate. Nonconductive acorn nuts are provided to prevent any accidental short circuits. Furthermore, the high quality in-tank wiring is insulated with chemically resistant PTFE. Stainless steel crimp-on ring terminals and heat shrink are provided for external wiring connections. Unlike the 2004-2007 WRX STi OEM variation, the Radium Engineering collector box has been optimized to work in ALL gas tanks. Shown below is the smallest OEM gas tank baffle found in the supported model range. It improves the fuel supply around the pump(s) inlet. There is a 1″ check valve incorporated on the front side of the tank that serves as a trap door keeping the pump(s) supplied with fuel during aggressive driving. Furthermore, all returning fuel from the pressure regulator return and the crossover hose enter the collector box keeping it full. The OEM fuel level and fuel temperature sensors secure to the mounting bracket.
Features
- Anodized Aluminum Laser Etched Plate
- Anodized Aluminum Collector Box and Check Valve
- Anodized Aluminum Venturi Jet Pump with Extra Orifice
- Anodized Aluminum Fittings for All Model Years
- Anodized Aluminum Dual Pump Mounts
- PTFE Wire with Stainless Steel Terminals
- Submersible Rubber Fuel Hose
- Stainless Steel Hardware and Clamps
Note: Single pump applications can reuse the OEM fuel pump controller, but it is recommended to upgrade the wiring as high flow fuel pumps draw additional current requiring larger gauge wire.
Note: This kit eliminates the OEM hanger’s “post” fuel pump filter. A low micron aftermarket fuel filter should be installed downstream to protect the injectors from debris.
