Turbomotiv Full-Race T4 IWG Turbo Manifold Heat Shield Mitsubishi EVO X

$280.95

-

For the Full-Race EVO X T4 twin scroll IWG manifold

Available on backorder

Free shipping on orders over $500 (exclusions apply)
SKU: EXH-HS-FR-T4-IWG-EVOX Categories: , Brand:

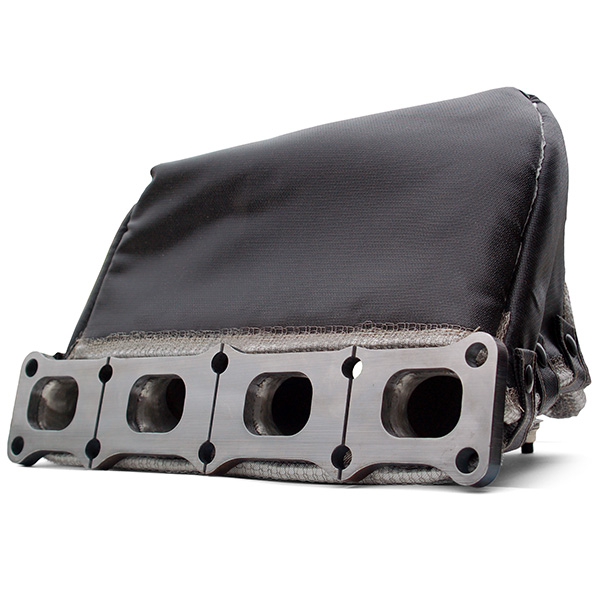

This heat shield is designed to fit Full-Race’s bottom mount T4 twin scroll IWG (internal wastegate) turbo manifold for the 2008+ Mitsubishi EVO X. It is highly recommended for all EVO X’s with plastic valve covers (2010+), which tend to melt with the use of most aftermarket manifolds. It is also recommended for all EVO X’s in racing applications, even with metal valve covers (2008-2009). It is a superior heat management solution compared to ceramic coating or header wrap and won’t rattle or vibrate much like metal heat shields.

Features:
  • Rugged outer layer designed to withstand the harshest conditions

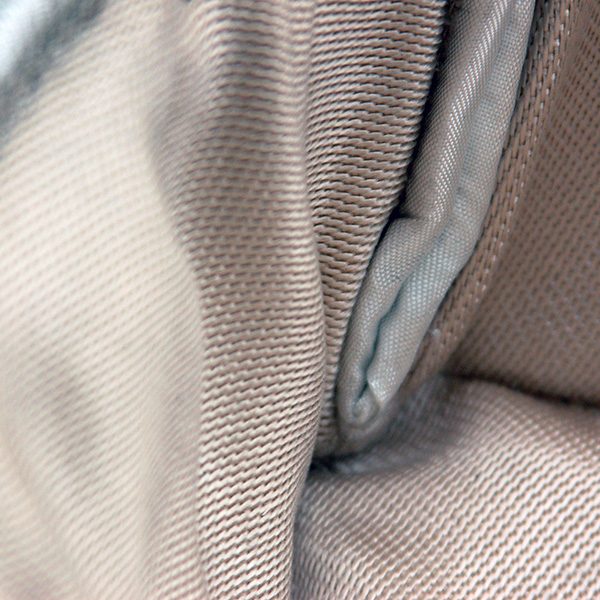

  • Core consists of ceramic insulation with a silica base fabric protected by stainless steel wire mesh
  • Inner layer capable of withstanding 1800°F continuous and 2200°F intermittent
  • Reduces under-hood temps and protects other engine components
  • Reduces turbo lag and increases turbine efficiency

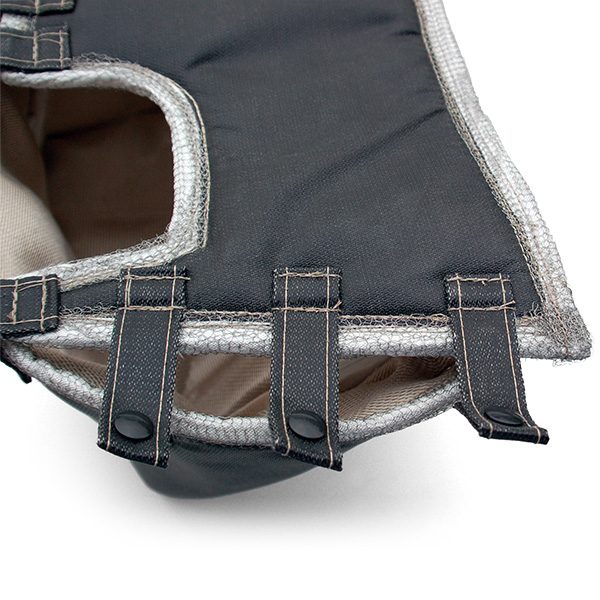

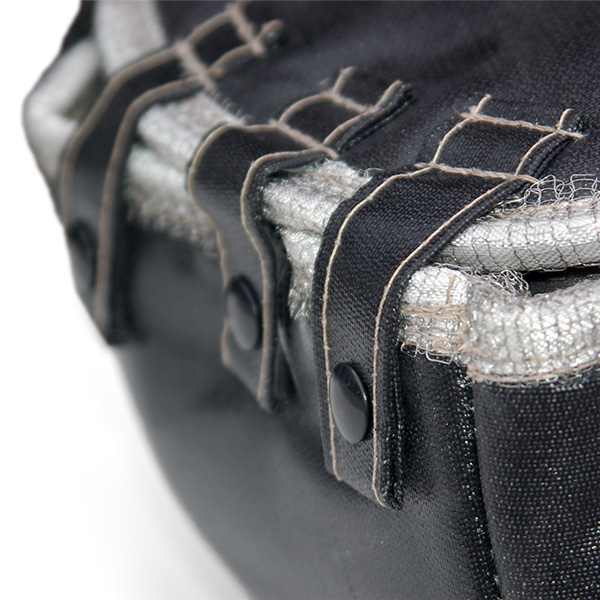

  • Includes embedded straps + snaps for easy installation and removal
Weight 2 lbs
Dimensions 8 × 8 × 4 in

Instructions

  1. Make sure to wear gloves as it may cause your skin to itch in direct contact of the blanket materials.
  2. We recommend installing the blanket after the manifold, turbo and downpipe have all been installed. Otherwise, access to the hardware may be restricted if installed prior.
  3. Remove the factory metal heat shield(s) from the firewall area.

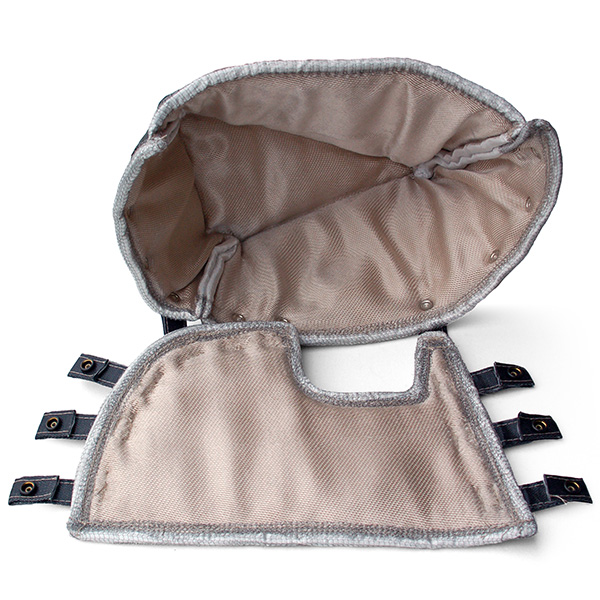

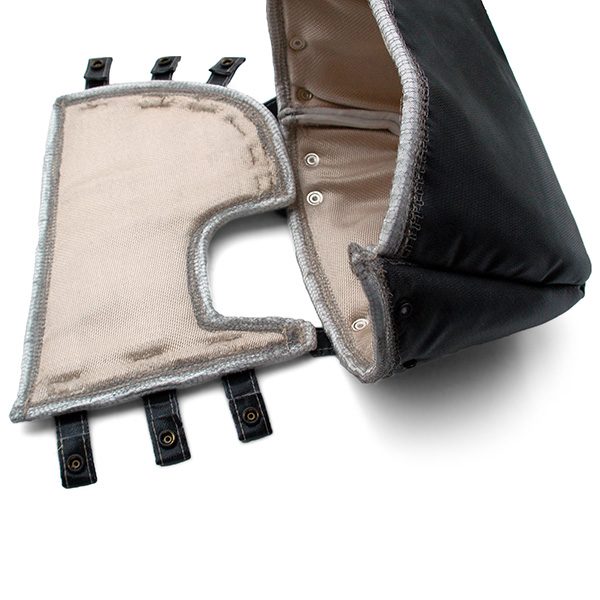

  4. Slide the bottom piece into place below the runners and butted up against the manifold collector/turbo flange.
  5. Position the top half into place by aligning the straps/snaps on both pieces.
  6. Make sure there are no noticeable air gaps between the top and bottom pieces, especially near the firewall, plastic or sensors.
  7. Once you are happy with the fitment, secure the bottom piece to the top piece by snapping all the straps into place.

FAQ

  • Is it a fire hazard?

    First off, DO NOT use this product on a vehicle with an oil leak. If there is an oil leak present, fix it first and clean up any residue before installing this product.

    However, the likelihood of a fire occurring after installation is very rare but certainly possible with oil in direct contact. A small oil drop here and there on the exterior surface is not going to soak through instantly and cause a fire though. The inherently flame-retardant material is very thick, unlike header wrap, and it would take quite a bit of oil saturation to soak through and cause an "oil fire".

    On the flip side, it can act as a barrier as well. If a major oil leak were to develop on the high pressure line around the turbo area WITHOUT utilizing this product, or even just with only ceramic coating, the oil could directly come in contact with the hot metal surfaces and would be more vulnerable to ignite.

    Should there be smoke or a burning smell after first use?

    This product can emit smoke during the first heat cycle. You might also smell a burning odor for a few days but it will eventually go away.

    Where is it made?

    100% made in the U.S.A. by a manufacturer who has contracts in the race industry (Nascar, ALMS, Grand-am, etc) and military.

Make Model Year
Make Model Year
Mitsubishi EVO X 2008-2015
