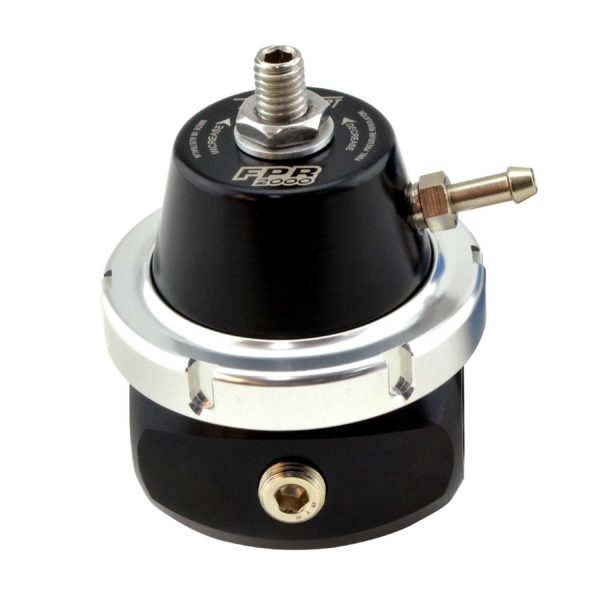

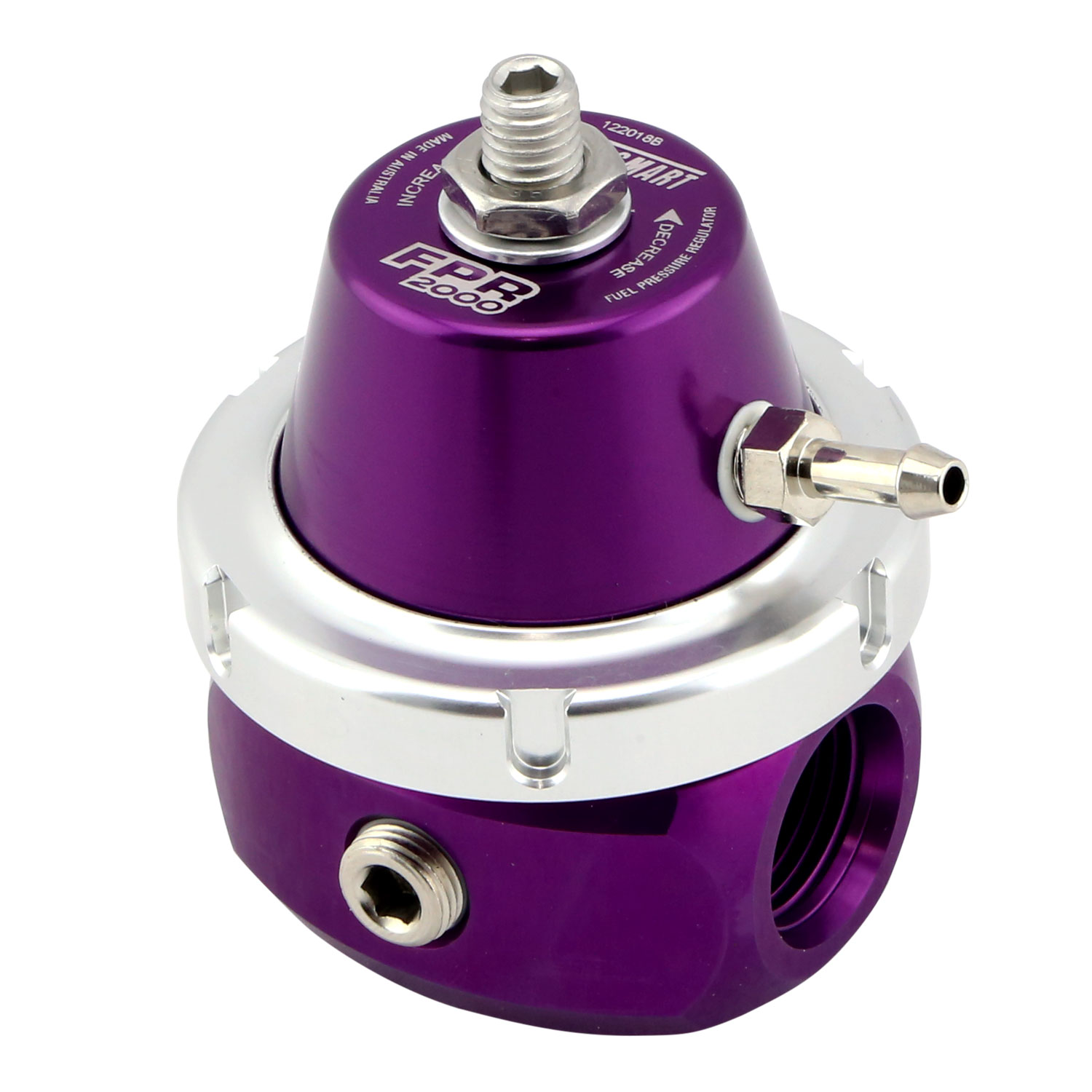

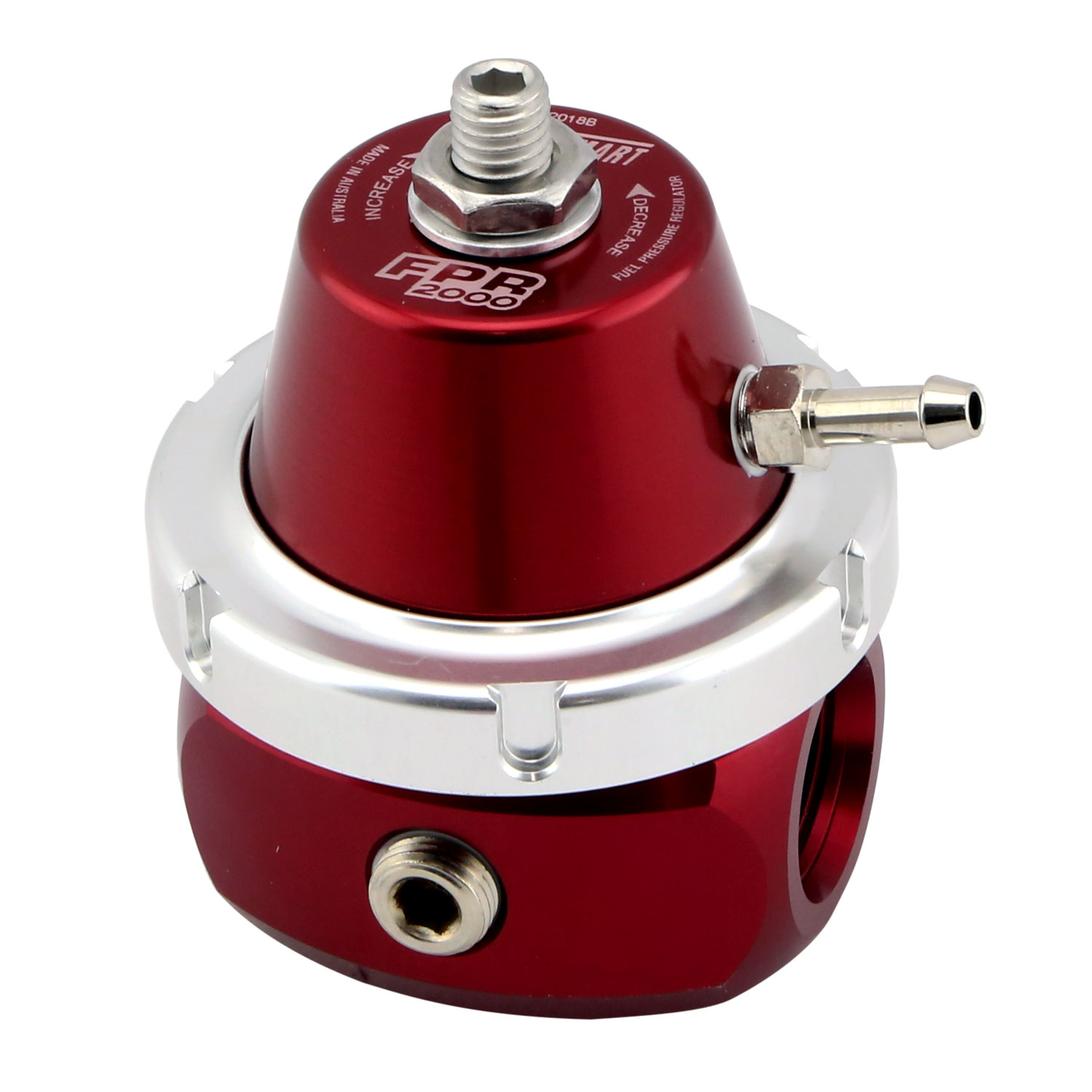

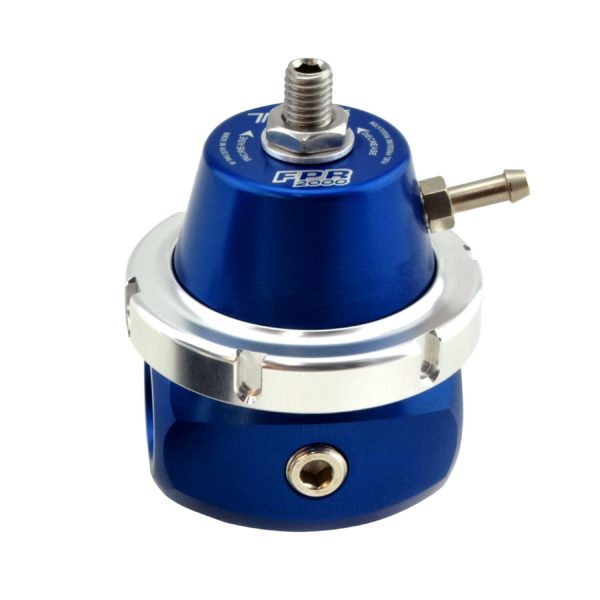

Turbosmart’s newest High-performance EFI fuel pressure regulator is smaller, lighter and better! Featuring two -8AN inlet ports, one -8AN return port, and one 1/8 NPT gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 2000hp fuel systems. FPR’s feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same. Factory tested.
FPR FEATURES:
– EFI fuel regulator
– 3 x -8AN ports
– 1/8″ NPT gauge port
– Capable of regulating up to 2000hp of fuel flow
– 1:1 manifold pressure ratio with no load losses
– 30-90psi base pressure range
– Stainless steel internals providing maximum integrity and reliability
– Suitable for all fuel types
– Operational between -35ºC to +200ºC
– MILSPEC diaphragm
– Bracket and retaining clip supplied
– Pressure port 1/16 NPT with nipple supplied
– Manufactured, assembled and validated in-house at Turbosmart HQ
