Name: Turbomotiv Billet MIVEC Exhaust Cam Gear Housing Mitsubishi EVO X | Turbomotiv
SKU: CGH-EXH-EVOX
Price: 159.95 USD
Availability: OutOfStock

Turbomotiv Billet MIVEC Exhaust Cam Gear Housing Mitsubishi EVO X

$159.95

Out of stock

Free shipping on orders over $500 (exclusions apply)

We have manufactured a solution for EVO X owners that have experienced failures in the factory MIVEC exhaust cam gear housing after installing upgraded valve springs. It has been noticed over time that the stock cast aluminum housing will develop cracks in key areas that can cause a loss of MIVEC control when valve spring seat pressure is increased or during loss of oil pressure. By enlarging the overall diameter and CNC machining it from billet 6061-T6 aluminum, we have increased the overall strength of the piece, making it more resistant to failure.

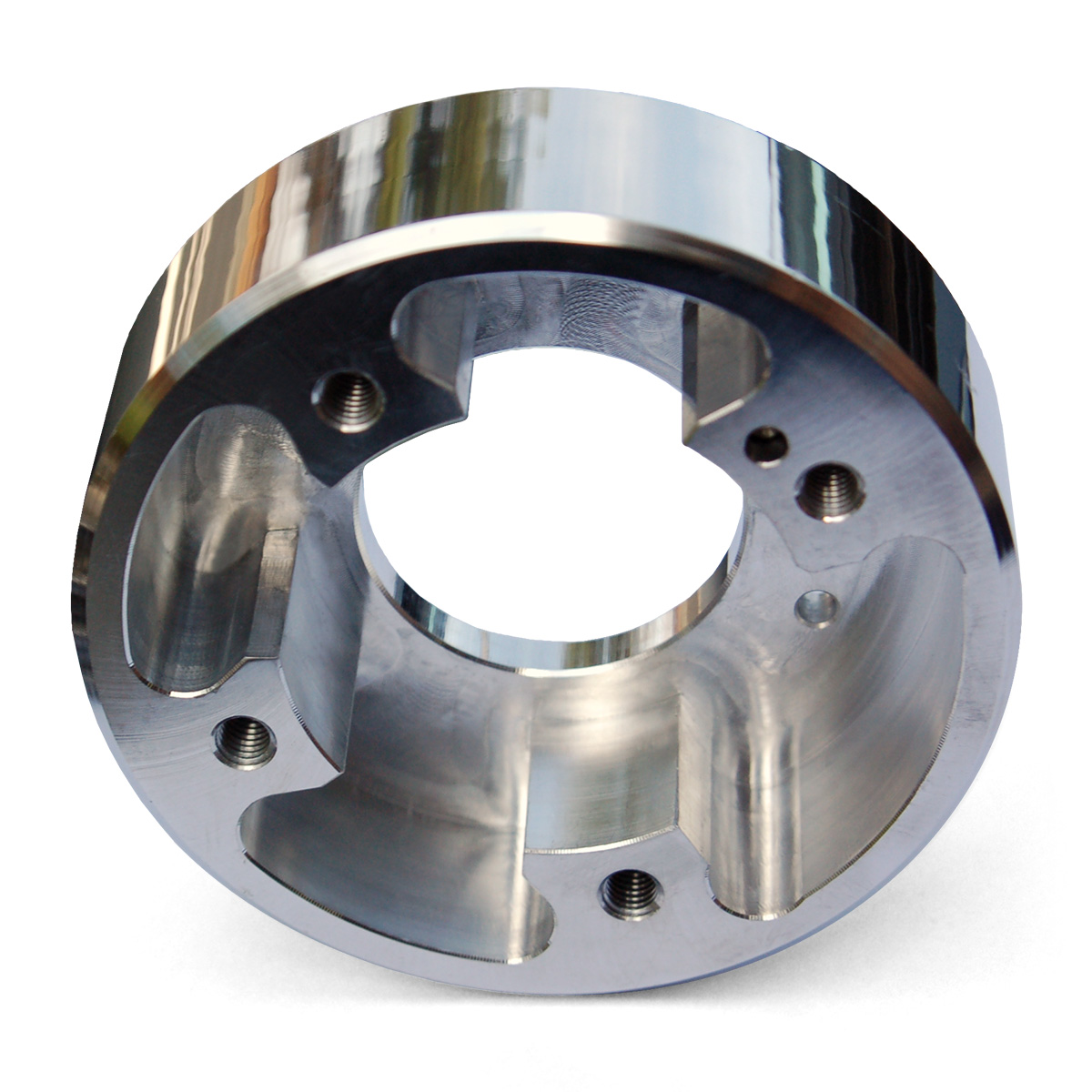

CNC machined from billet 6061-T6 aluminum
Does not include the factory phaser, gear, hardware, spring or retaining pin

Weight	1 lbs
Dimensions	4 × 4 × 1 in

Instructions

Use lube on all internal surfaces during assembly
Use Loctite Threadlocker Blue 242 on bolts and torque to 100 in/lbs using a 5-point pentalobe T30 Torx bit

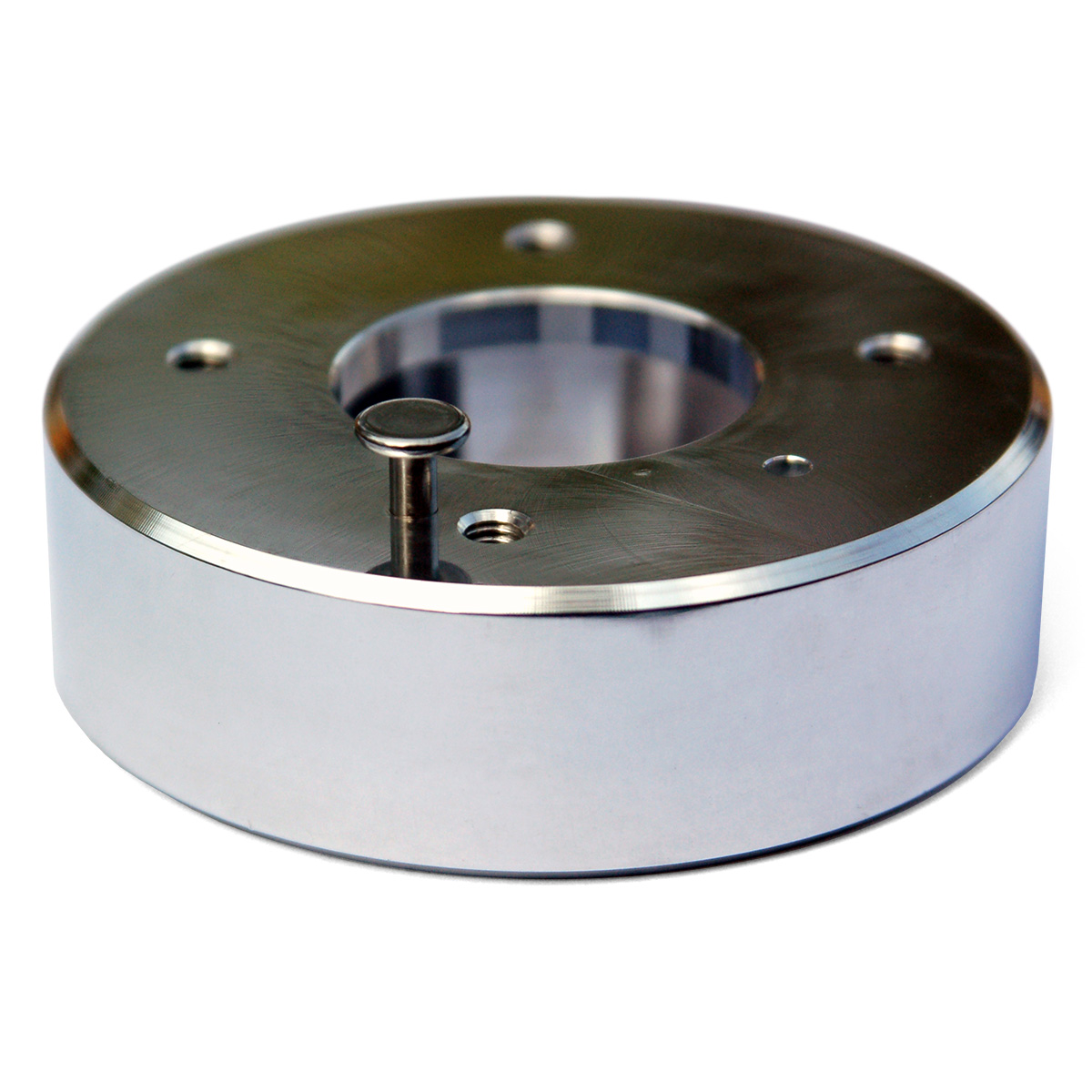

Install the retaining pin with an arbor press to a distance of ~ .425″ from the top of the pin to the suface of the MIVEC housing
